Description
Product Details
Part Number: XCH2144-S
Shank Size: 1/2″
Total Angle: 108°
Flat Tip Width: .08″
Max Cut Depth: .13″
Max Cut Width: 1/2″
Overall Length: 3″
Cut Edges: 3
Materials: ALUMINUM, PLASTICS, WOOD
XCH2144-S 108°
$73.78

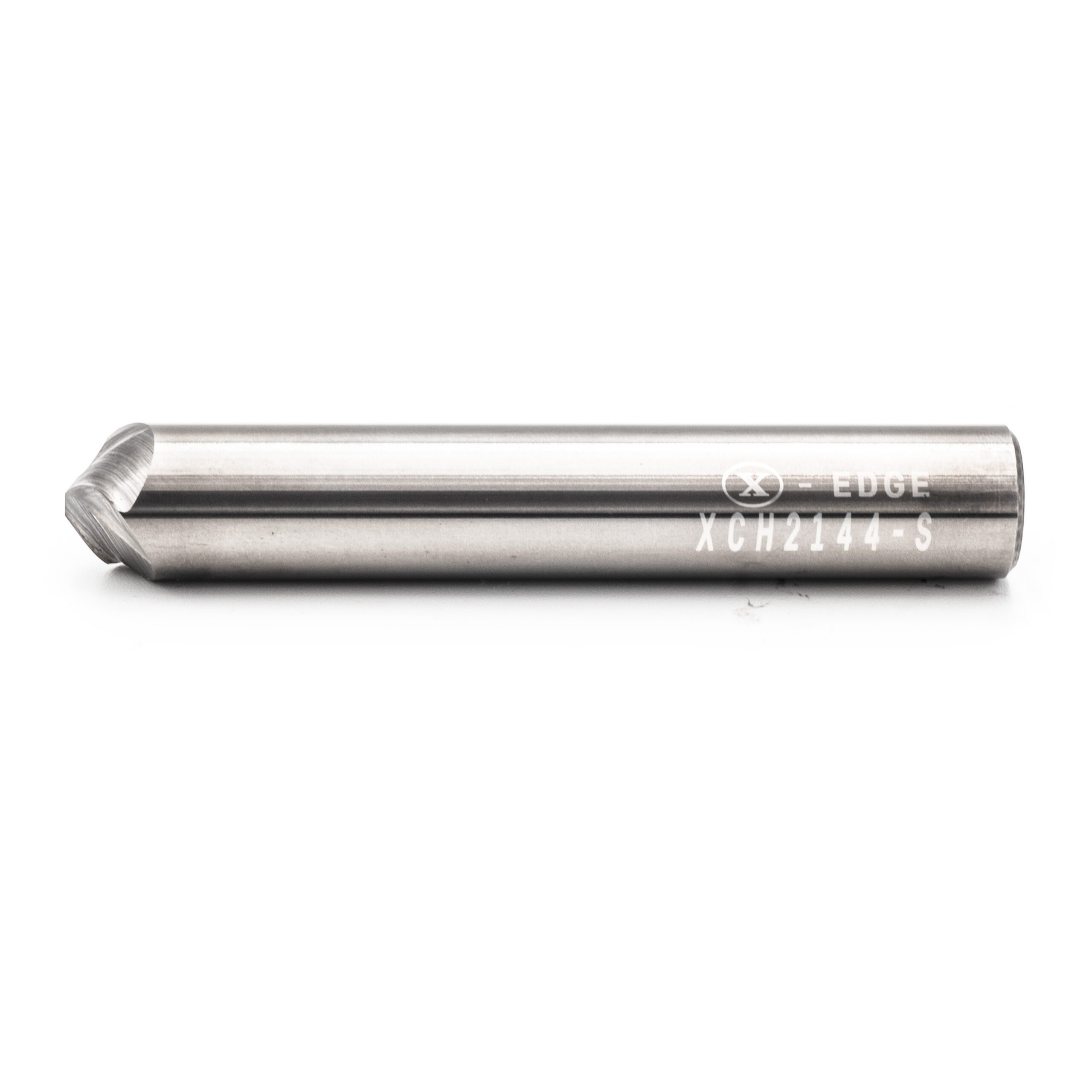

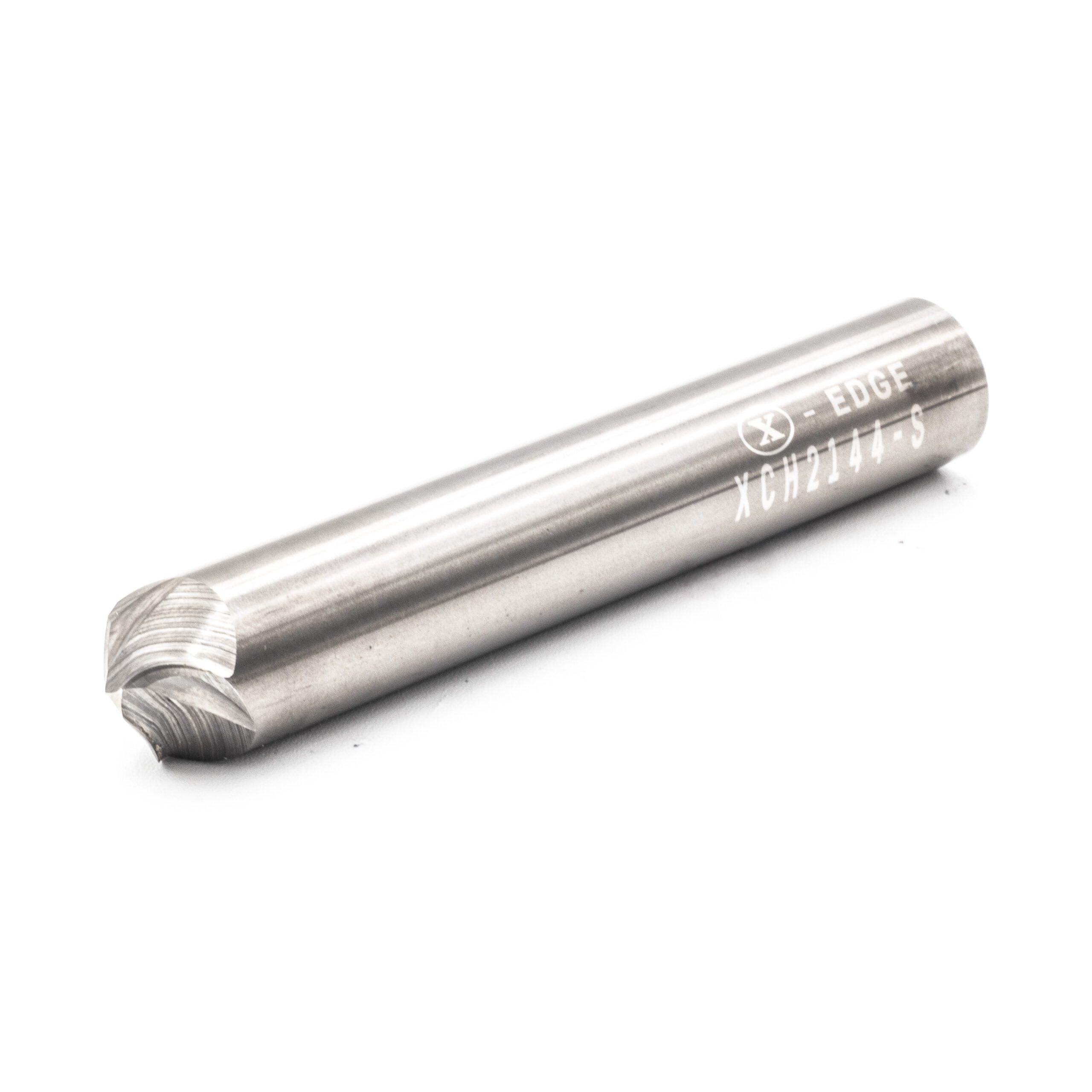

Chamfer tool with unique 3 fluted spiral design to achieve high quality chamfers on ALUMINUM, as well as certain PLASTICS & WOODS.
Shank Size: 1/2″
Total Angle: 108°
Flat Tip Width: .08″
Max Cut Depth: .13″
Max Cut Width: 1/2″
Overall Length: 3″
Cut Edges: 3
Product Specifications
| Manufacturer | X-Edge | Materials | Wood | ||||
|---|---|---|---|---|---|---|---|
| Radius | Cutting Dia | 1/2 | |||||
| Cut Length | .08" | Shank | 108° | ||||
| OAL | .13" | # Flutes | |||||
| Weight | 0.30625 lbs | Weight | 0.30625 lbs | Dimensions | 3.75 × 0.75 × 0.75 in | Dimensions | 3.75 × 0.75 × 0.75 in |
| Shank Size | 1/2" |
Shank Size | 1/2" |
Total Angle | 108° |
Total Angle | 108° |
| Flat Tip Width | .08" |
Flat Tip Width | .08" |
Max Cut Depth | .13" |
Max Cut Depth | .13" |
| Max Cut Width | 1/2" |
Max Cut Width | 1/2" |
Overall Length | 3" |
Overall Length | 3" |
| Number of Flutes | 3 |
Number of Flutes | 3 |
Flute Direction | Up |
Flute Direction | Up |
| Material | ALUMINUM, WOOD, ACRYLIC, UHMW, HDPE, HDU, PHENOLIC, SOLID SURFACE, HARDWOOD, MELAMINE BOARD, MDF |
Material | ALUMINUM, WOOD, ACRYLIC, UHMW, HDPE, HDU, PHENOLIC, SOLID SURFACE, HARDWOOD, MELAMINE BOARD, MDF |
